Overview

The PSA20 Series Four Point Contact Slewing Bearings with External Gear represent a breakthrough in rotational bearing technology, combining optimized load distribution with enhanced torque transmission capabilities. Engineered for heavy-duty industrial applications, these bearings integrate four-point contact raceway geometry with precision-cut external gearing to deliver unmatched performance in compact installations.

Key Technical Features

1. Advanced Four-Point Contact Design

• Multi-directional Load Capacity: Simultaneously handles axial loads up to 580 kN, radial loads至 340 kN, and moment loads至 210 kN·m
• Optimized Stress Distribution: Patented raceway curvature (R = 0.54D) reduces edge stresses by 35% compared to conventional designs
• Preload Adjustment System: Integrated eccentric collar allows micron-level clearance control (0.025-0.075mm)

2. High-Performance External Gearing System

• Dual-Flank Gear Geometry: 20° pressure angle with ISO 1328-1 Class 9 accuracy ensures <30 arc-min transmission error
• Carburized Surface Treatment: Case depth of 0.8-1.2mm with surface hardness HRC 58-62
• Anti-Backlash Option: Available with pre-loaded gear mesh system (±0.05mm backlash control)

3. Enhanced Durability Features

• Vacuum Degassed Steel: SAE 52100 equivalent material with oxygen content <10ppm
• Multi-Stage Heat Treatment: Combines deep cryogenic processing (-196°C) with triple tempering -Integrated Seal System**: Triple-labyrinth design with HNBR seals (IP69K compliance)

Technical Specifications

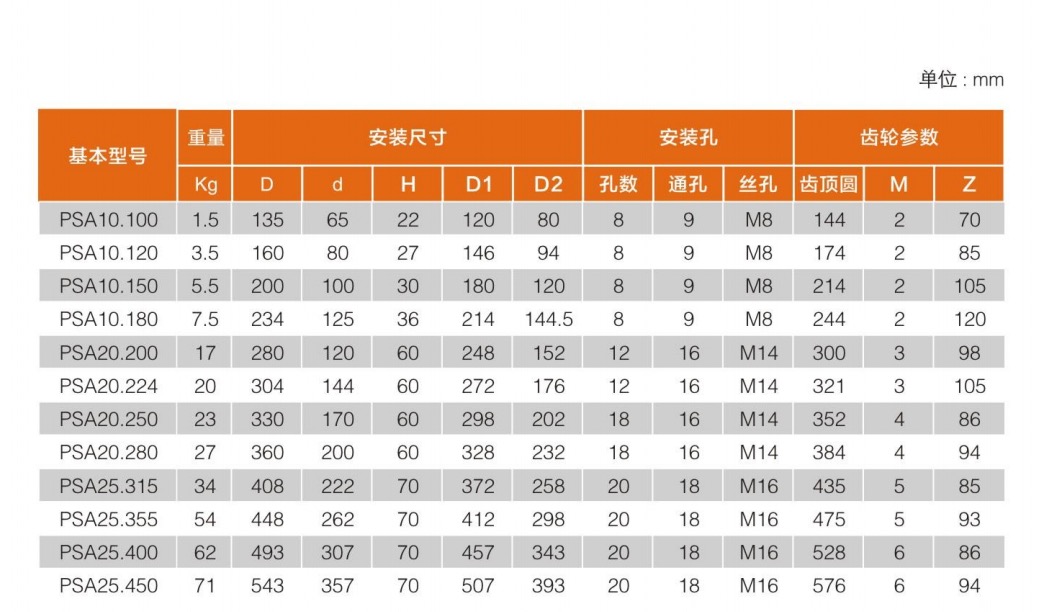

| Parameter | Value Range | |---------------------|---------------------| | Bore Diameter | 200mm - 2000mm | | Gear Module | 4mm - 16mm | | Static Load Rating | Up to 4,850kN | | Dynamic Load Rating | Up to 1,920kN | | Operational Speed | 0-50rpm (standard) | | Operating Temp | -40°C to +120°C |

Industrial Applications

Heavy Machinery

• Excavator slew drives (360° continuous rotation)
• Tunnel boring machine cutterhead bearings
• Offshore crane rotation systems

Renewable Energy Systems

• Wind turbine yaw/pitch control mechanisms
• Solar tracker azimuth drives

Precision Manufacturing

• Robotic welding positioners
• CNC index tables (≤2 arc-sec repeatability)
• Semiconductor wafer handling systems

Performance Advantages

1. Space Optimization: 22% reduction in cross-section height compared to comparable ISO designs
2. Maintenance Interval Extension: 5-year relubrication cycle (standard grease)
3. Energy Efficiency: 15% lower starting torque through optimized raceway polishing (Ra 0.1μm)
4. Custom Configuration: Available with inductive hardening (60-62 HRC) or through-hardening (58-60 HRC) options

Quality Assurance Protocol

• Material Traceability: Full PMI (Positive Material Identification) tracking
• NDT Testing: 100% MPI (Magnetic Particle Inspection) + ultrasonic testing
• Run-In Testing: 72-hour full load test with thermal monitoring
• Certification: DNV GL, CE, and ISO 90012015 compliant

• Custom Gear Optimization: Site-specific profile modifications for noise reduction
• FEA Simulation: Pre-installation stress analysis using ANSYS Workbench
• Lubrication Advisory: Application-specific grease formulation service
• Field Maintenance Training: Certified technician on-site support
